Installing an emergency siren system requires careful planning, proper tools, and attention to safety. Whether you’re working on a police cruiser, ambulance, or fire truck, getting the wiring right is crucial for both performance and safety.
Understanding Emergency Siren Systems and Safety Requirements
Emergency siren systems form the backbone of any first responder vehicle’s warning capabilities. These systems work through three main components that must function together seamlessly. The siren amplifier serves as the brain, generating powerful electronic tones. The speaker acts as the voice, projecting these sounds across significant distances. The control head gives operators the ability to manage different tones and functions during critical situations.
Working with vehicle electrical systems isn’t something to take lightly. Many technicians have learned this lesson the hard way after dealing with fried components or, worse, electrical fires. The complexity of modern vehicle wiring means that one wrong connection can cascade into expensive repairs. That’s why having a solid foundation in automotive electricity isn’t just recommended – it’s essential.
Wear safety glasses and insulated gloves, especially when working in tight spaces where sharp edges lurk. Keep a fire extinguisher nearby, because electrical fires can start faster than you might expect.
Essential Tools and Materials for Siren Installation
Getting the right tools before you start saves time and prevents frustration. You’ll need a quality wire stripper that can handle different gauge wires cleanly. A good crimping tool is worth its weight in gold – cheap crimpers create loose connections that fail when you need them most. Don’t forget a complete screwdriver set and socket set for mounting components securely.
The electrical components matter just as much as the tools. Use wire that meets or exceeds the manufacturer’s specifications. Skimping on wire gauge might save a few dollars upfront, but it leads to voltage drops and poor performance down the road. Marine-grade connectors resist corrosion better than standard automotive connectors, making them worth the extra cost in harsh environments.
Zip ties keep everything organized and prevent wires from chafing against sharp edges. These details might seem minor, but they add up to a professional installation that stands the test of time.
Pre-Installation Planning and Vehicle Assessment
Every vehicle presents unique challenges, so taking time to assess your specific situation pays dividends later. Start by checking the vehicle’s electrical capacity. An older patrol car with a weak alternator might struggle to power a high-output siren system along with all the other emergency equipment. Calculate the total amperage draw to ensure the charging system can keep up.

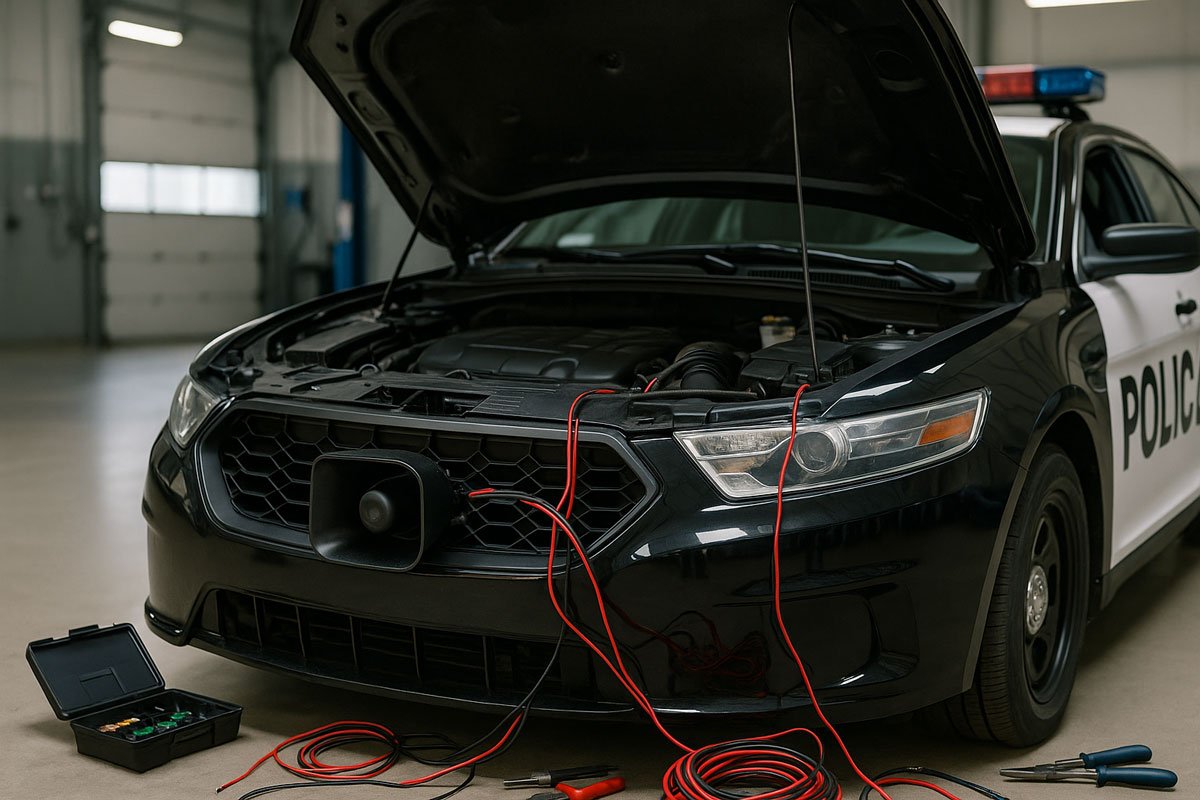

Speaker placement affects both performance and installation difficulty. The ideal location puts the speaker as far forward as possible while keeping it protected from road debris. Behind the grille works well for most vehicles, but some designs require creative mounting solutions. Avoid locations where the speaker might interfere with airflow to the radiator or air conditioning condenser.
The amplifier needs a secure, dry location with adequate ventilation. Under the driver’s seat works for many installations, but trunk mounting might be necessary for vehicles with limited interior space. Consider accessibility for future maintenance when choosing the location. Running wires through the firewall requires careful attention to avoid damaging existing harnesses or compromising weather sealing.
Step-by-Step Wiring Process for Emergency Sirens
Power connections form the foundation of any reliable siren installation. Start with the main power wire, which should connect directly to the battery positive terminal through an appropriately sized fuse. This direct connection ensures the siren receives clean power without interference from other vehicle systems. Use a fuse rating that protects the wiring while allowing normal operation.
Ground connections cause more problems than any other aspect of siren installations. A poor ground creates all sorts of mysterious issues that can drive even experienced technicians crazy. Choose a ground point that connects directly to the vehicle’s main chassis ground. Clean the connection point down to bare metal and use a star washer to bite through any paint or corrosion that might develop over time.
Speaker wiring seems straightforward, but phase relationships matter more than many installers realize. When using two speakers, they must be wired in phase to avoid sound cancellation. The Federal Signal TS100-N documentation specifically emphasizes this point because out-of-phase speakers can reduce sound output by 50% or more. Double-check your connections against the wiring diagram before energizing the system.
Control head installation requires routing the harness carefully through the vehicle interior. Modern vehicles have airbag systems that don’t tolerate interference well. Keep wiring away from airbag deployment zones and secure everything with proper clips. The control head should be positioned where the operator can reach it easily without taking their eyes off the road for extended periods.
Testing and Verification Procedures
Testing starts the moment you reconnect the battery. Watch for any signs of electrical problems like sparks, smoke, or unusual sounds. These symptoms indicate serious wiring errors that need immediate attention. A properly installed system should power up without drama and respond to control inputs immediately.
Sound testing reveals issues that aren’t apparent during the wiring phase. Each siren tone should be clear and loud without distortion. If you hear crackling or notice reduced volume, check the speaker connections first. Loose connections create resistance that shows up as heat and poor performance. A thermal imaging camera can help identify hot spots in the wiring that indicate problems.
System integration testing ensures the siren works properly with other vehicle systems. Test the horn override function to make sure the regular horn still works. Check that the siren doesn’t interfere with radio communications or other electronic equipment. Some vehicles require additional filtering to prevent interference with sensitive systems like engine management computers.
Troubleshooting Common Installation Issues
Power problems usually trace back to connections rather than component failures. If the system won’t turn on, start with the basics. Check the main fuse first, then verify that the power and ground connections are tight and clean. A voltage drop test can reveal resistance in the power supply circuit that might not be obvious during a visual inspection.
Sound quality issues often stem from speaker problems or incorrect wiring. Distorted audio might indicate a damaged speaker or an impedance mismatch between the amplifier and speaker. Low volume could result from out-of-phase wiring or a partially failed speaker. Swapping speakers can help isolate whether the problem lies with the speaker itself or the amplifier.
Control system glitches can be the most frustrating to diagnose because they’re often intermittent. A loose connection in the control harness might work fine on the bench but fail when subjected to vehicle vibration. Wiggling wires while testing can help identify these problematic connections. Sometimes the issue lies with the control head itself, which might require replacement under warranty.
Professional Installation vs. DIY Considerations
The decision between professional installation and doing it yourself depends on several factors beyond just technical skill. Professional installers bring experience with specific vehicle models and common installation challenges. They also carry insurance that covers any damage that might occur during installation. For fleet vehicles or high-value applications, professional installation often makes financial sense.
DIY installation can be rewarding for those with the right skills and tools. It also allows for customization that might not be available through standard installation services. However, mistakes can be expensive, and some manufacturers void warranties for non-professional installations. Consider your comfort level with automotive electrical work and the consequences of potential problems.
Cost considerations extend beyond the initial installation. Professional installations often include warranties on both parts and labor. They also ensure compliance with local regulations, which can be complex for emergency vehicle equipment. Insurance companies sometimes require professional installation for coverage, making it important to check your policy before deciding on an approach.
The complexity of modern vehicles continues to increase, making professional installation more attractive for many applications. Advanced driver assistance systems, multiple computer networks, and sophisticated electrical architectures require specialized knowledge to avoid problems. What seemed like a simple installation in older vehicles might require extensive research and special tools in newer models.
